芯迈质量方针

全心全意，品质优异，持续改进，顾客满意

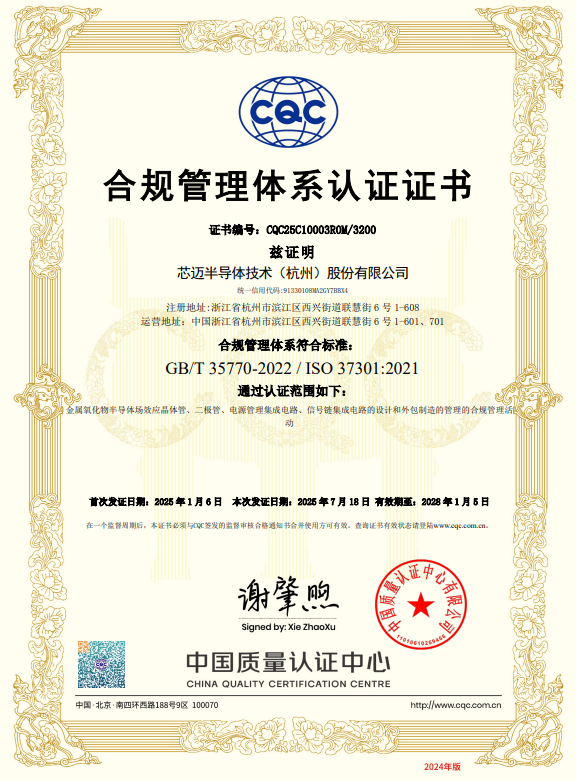

管理体系认证

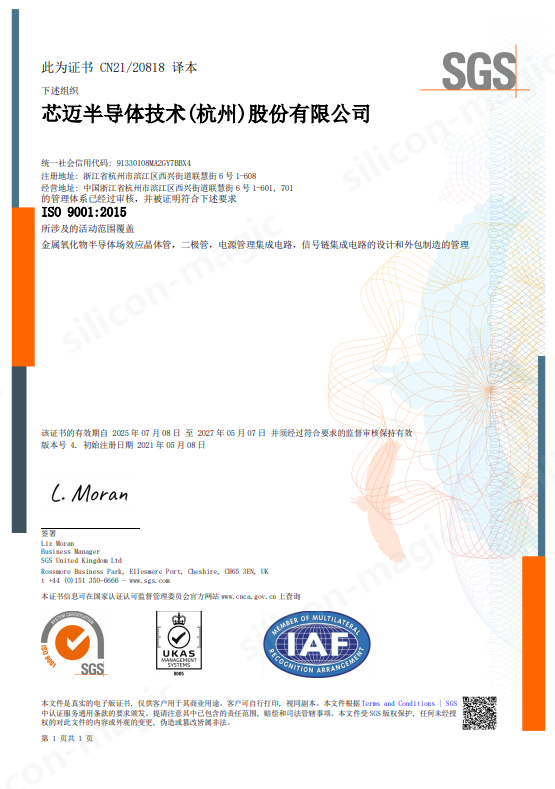

    杭州芯迈半导体有限公司注重公司内部的制度建设和体系管理，在品质管控、知识产权和信息安全方面建立了完整的制度体系，连年来通过ISO9001质量管理体系认证、ISO27001信息安全管理体系认证、GB/T29490知识产权管理体系认证等。










产品高可靠性

Type Test Description Abbr. Condition Duration Lots/SS Fail/Qty
Electrical Stress Test High Temperature Reverse Bias
JESD22-A108 		HTRB Ta=150℃/ or 175℃
VDS=80%/ or 100% BVDSS 		1000 hrs 1 or 3×77 0/77 or 231
High Temperature Gate Bias
JESD22-A108 		HTGB Ta=150℃ or 175℃
VGS=100% VGS(max) 		1000 hrs 1 or 3×77 0/77 or 231
ESD HBM Characterization
JS-001 or AEC-Q101-001 		ESDH From ±0.1KV to ±8KV - 1×9 or 30 0/9 or 30
ESD CDM Characterization
JS-002 or AEC-Q101-005 		ESDC From 0.1KV to ±2KV - 1×3 or 30 0/3 or 30
Environmental
Stress Test 		Pre-conditioning
JESD22-A113 		PC Step1: SAT
Step2: Bake 24hrs@125℃
Moisture soak:
MSL1: 168hrs @ 85℃,
85%RH
MSL3: 192hrs @ 30℃,
60%RH
Step3: Reflow*3
Step4: SAT
 168 hrs or 192 hrs 1 or 3 x338 0/338 or 1014
Temperature Cycling Test
JESD22-A104 		TCT -55 to 150℃
 500/ or 1000 cycles 1 or 3×77 0/77 or 231
Autoclave Cooker
JESD22-A102 		AC Ta=121℃
RH=100%
29.7psia
96 hrs 1 or 3×77 0/77 or 231
Biased Highly Accelerated
Stress Test
JESD22-A110 		BHAST Ta=130℃ RH=85%
80% rated of Max BVdss
up to 42V
 96 hrs 1 or 3×77 0/77 or 231
High Humidity High Temp.
Reverse Bias
JESD22-A110 		H3TRB 85°C/85%RH,
80% rated of Max BVdss
up to 100V
 500 /or 1000 hrs 1 or 3×77 0/77 or 231
Intermittent Operational Life
 MIL-STD-750 Method 1037 		IOL TA=25℃ ΔTj≥100℃ 15000 cycle 1 or 3×77 0/77 or 231
Resistance to Solder Heat
 JESD22-A-111 (SMD) 		RSH T=245 or 260℃，t=10 S - 1or 3x30 0/30 or 90
Resistance to Solder Heat
 JESD22-B-106 (THMD) 		RSH T=260 or 270 ℃±5℃，
t=10 S 		- 1or 3x30 0/30 or 90
Solderability
 Follow J-STD-002 		SD T=245℃，t=5 S
 - 1or 3x10 0/30 or 90
