计算
系统概述
我们的功率半导体产品可帮助您开发出具有高能效且高功率密度，小型化的网络和服务器电源产品，并助力于服务器主机板的安全可靠运行。
网络和服务器电源通常需要：• 通过软开关、无桥 PFC 或LLC 在 20%-80% 负载范围内实现的更高能效。
• 适用于数据中心应用的小型化和高功率密度。

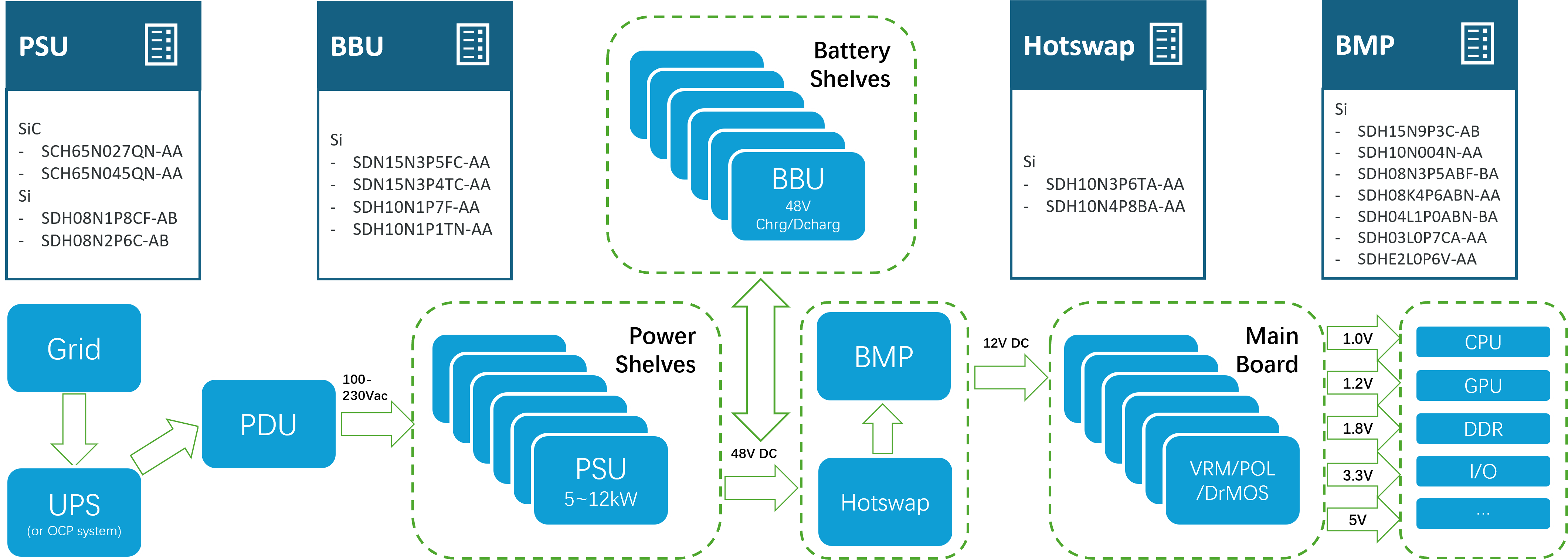

系统应用框图
产品推荐
| Part No. | Package | Vds_max(V) | Rds(on)(mΩ)_25°C | Vth_typ.(V) | Vgs_max(V) | Qg_Vgs=10V(nC) | IDS_Max(A) | Status | |
|---|---|---|---|---|---|---|---|---|---|
| Vg=10V | |||||||||
| Typ | Max | ||||||||
| SDH08N2P6C-AB | PDFN5*6 | 80 | 2 | 2.6 | 3 | ±20 | 90 | 180 | Release |
| SDH08N1P8CF-BA | PDFN5*6 | 80 | 1.5 | 1.8 | 3 | ±20 | 71 | 230 | Sample |
| SDH10N1P7F-AA | TO263-7 | 100 | 1.3 | 1.7 | 3 | ±20 | 189 | 330 | Release |
| SDH10N1P1TN-AA | TOLL | 100 | 0.94 | 1.1 | 3 | ±20 | 262 | 330 | Release |
| SDH10N3P6TA-AA | TOLL | 100 | 3.2 | 3.6 | 3 | ±20 | 138 | 236 | Sample |
| SDN10N4P9B-AC | TO263-3 | 100 | 4.4 | 4.9 | 3 | ±20 | 69 | 135 | Release |
| SDH15N9P3C-AB | PDFN5*6 | 150 | 7.9 | 9.3 | 3 | ±20 | 33 | 79 | Release |
| SDH10N004N-AA | PDFN5*6 DSC | 100 | 3.2 | 4 | 3 | ±20 | 59 | 134 | Release |
| SDH08N3P5ABF-BA | DFN3.3x3.3 SD DSC | 80 | 2.85 | 3.3 | 1.7 | ±20 | 39 | 100 | Sample |
| SDH08K4P6VN-AA | PDFN3.3x3.3 DSC | 80 | 3.5 | 4.6 | 1.7 | ±20 | 41.1 | 100 | Sample |
| SDH03L0P7CA-AA | PDFN5*6 | 30 | 0.55 | 0.68 | 1.6 | ±20 | 118 | 358 | Sample |
| SDHE2L0P6V-AA | DFN3.3x3.3 DSC | 25 | 0.63 | 0.75 | 1.6 | ±16 | 53.5 | 286 | Release |
| SCH65N027QN-AA | TOLL | 650 | 27 | 38 | 2.7 | -8/+22 | 98 | 84 | Release |
| SCH65N045QN-AA | TOLL | 650 | 45 | 63 | 2.7 | -8/+22 | 49.7 | 50 | Release |
| SCHA2N016JN-AA | TO247 | 1200 | 18 | 25.2 | 3 | -10/+22 | 169 | 118 | Release |
| SCHA2N040JN-AA | TO247 | 1200 | 40 | 56 | 3 | -10/+22 | 62 | 57 | Release |
