屏蔽栅沟槽型MOSFET

Document

产品介绍

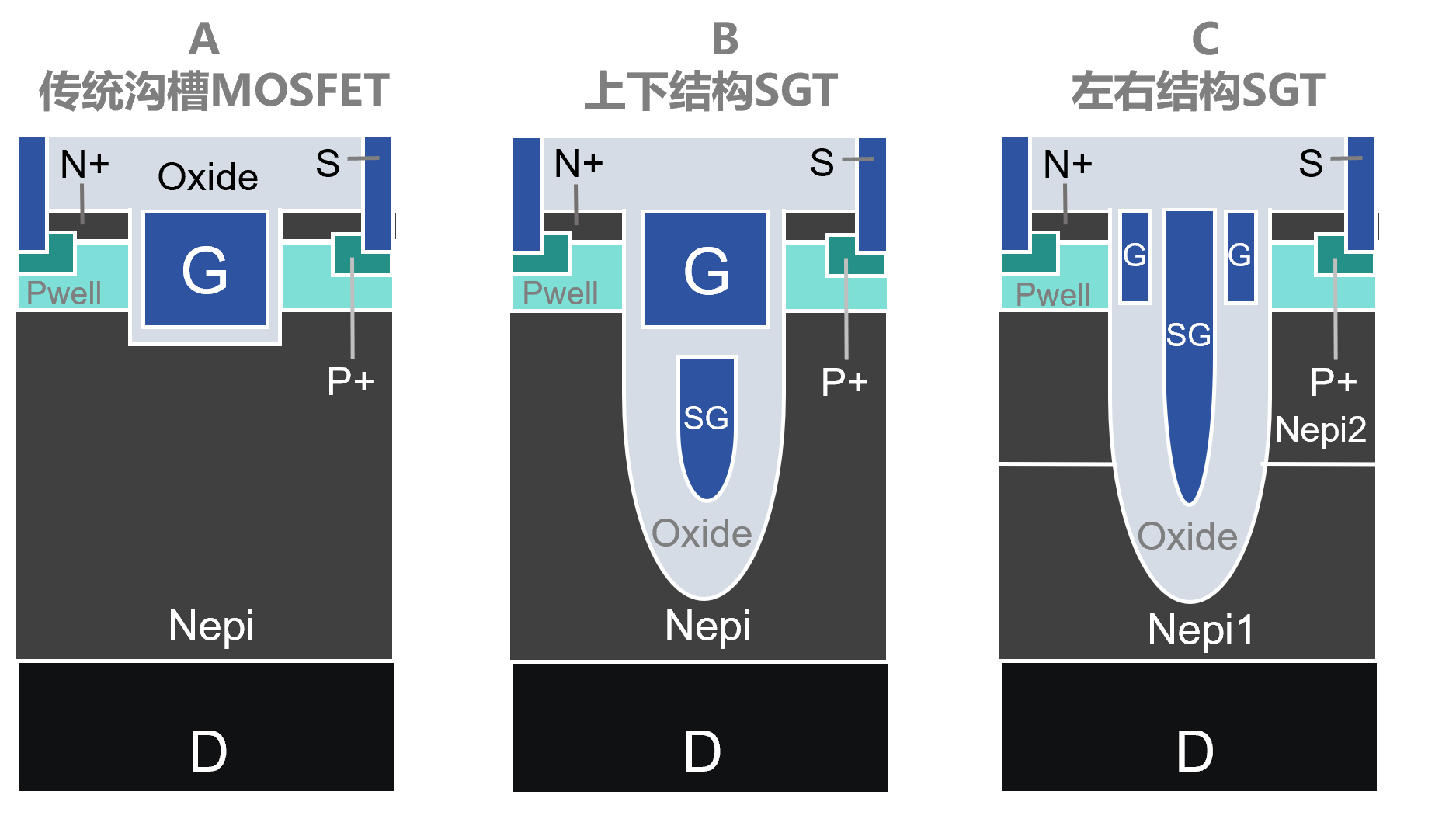

30V-100V的SGT MOSFET结构则将传统的Trench VDMOS(A)的多晶硅栅极分成上部的多晶硅控制栅和下部的多晶硅屏蔽栅，如图(B)所示，提升了器件的开关特性和导通特性，同时降低了器件的特征导通电阻和栅极电荷

150V-200V的SGT MOSFET结构则将控制栅设计在屏蔽栅的左右两边，如图(C)所示，显著增强了器件高温条件下的电流能力和抗冲击特性，更适宜于高温环境下的应用


特点与优势

Ø 极低的FOM

Ø 高UIS耐量，100%测试

Ø Cgd/Cgs,误开启风险低

Ø 产品一致性行业领先

Ø 符合AECQ-101标准

Ø 具有高可靠↑性先进封装



应用领域

Ø 低压BLDC电机驱动

Ø 汽车电子

Ø 低压电池充电保护电路

Ø 电池化成

Ø 光伏微型逆变器

Ø 通信和服务器电源


产品列表

Part No&产品规格书 Package Vds_
max (V) 		Rds(on)(mΩ)_25°C Vth_
typ.(V) 		Vgs_
max.(V) 		Qg_
Vgs=10V
(nC) 		Qgd
(nC) 		IDS_
Max(A) 		Status
Vg=10V Vg=4.5V
Max Max

SDH15N7P5S1A

TO220-3 150 7.5
2.7 ±20 144 47 127 Release

SDN11N4P3A-AA

TO220-3 110 4.3
3.3 ±20 114 32 120 Release

SDN11N004AN-AA

TO220-3 110 4
3.3 ±20 114 32 120 Release
icon_pdf.gifSDN11N004B-AA TO263-3 110 4
3.3 ±20 114 32 120 Release
SDN11N3P9A-AA TO220-3 110 3.9
3.3 ±20 124 39 175 Release

SDN11N3P5B-AA

TO263-3 110 3.5
3.3 ±20 124 39 175 Release
SDN11N003A-AA TO220-3 110 3
3.3 ±20 145 43 175 Release
SDN11N2P7B-AA TO263-3 110 2.7
3.3 ±20 145 43 175 Release
SDN11N002T-AA TOLL-8 110 2
3.3 ±20 145 43 330 Release
SDH11N1P6T-AA TOLL-8 110 1.6
3.3 ±20 217 69 330 Release
SDH10K020N-AA PDFN5*6-D-8 100 20 27 1.9 ±20 22.2 5.8 23 Release
SDN10K018S2Z DFN3*3-8 100 18 20 1.9 ±20 26 7.5 40 Release

SDN10K018S2E

DFN3.3*3.3-8 100 18 20 1.9 ±20 25 7.5 46 Release

SDN10K018S2C

PDFN5*6-8 100 18 20 1.9 ±20 25 8 45 Release
SDN10K7P8U-AA TO251-3 100 7.8 12 1.7 ±20 53 9 52 Release
SDN10K007S2C PDFN5*6-8 100 7 9 1.9 ±20 56 16 80 Release
SDN10K007C-AA PDFN5*6-8 100 7 11 1.7 ±20 53 9 106 Release
SDN10N006A-AA TO220-3 100 6
3 ±20 59 15 120 Release
SDN10N5P8C-AA PDFN5*6-8 100 5.8
3.2 ±20 57 17 106 Release
SDN10N5P3A-AC TO220-3 100 5.3
3 ±20 69 17 135 Release
SDN10K5P2C-AD PDFN5*6-8 100 5.8 10 1.7 ±20 53 9 106 Release
SDN10K5P2S2C PDFN5*6-8 100 5.2 7 1.9 ±20 56 16 80 Release
SDN10K5P2C-AC PDFN5*6-8 100 5.2 8.6 1.9 ±20 60 17 108 Release

SDN10N5P2AN-AA

TO220-3 100 5.2
3 ±20 84 25 124 Release

SDN10N5P1AN-AA

TO220-3 100 5.1
3 ±20 84 25 124 Release

SDN10K005C-AA

PDFN5*6-8 100 5 7.5 1.9 ±20 66 9 112 Release

SDN10N005AN-AA

TO220-3 100 5
3 ±20 69 17 135 Release

SDN10N4P9B-AC

TO263-3 100 4.9
3 ±20 69 17 135 Release

SDN10N4P9S2B

TO263-3 100 4.9
3 ±20 76 22 117 Release

SDN10N4P9S2C

PDFN5*6-8 100 4.9
3 ±20 77 24 80 Release

SDN10N4P2CN-AA

PDFN5*6-8 100 4.2
3 ±20 84 25 135 Release

SDA10N4P2S1A

TO220-3 100 4.2
3.5 ±20 100 34 158 Release

SDN10N4P2S2B

TO263-3 100 4.2
3 ±20 78 22 117 Release

SDN10N4P2S2C

PDFN5*6-8 100 4.2
3 ±20 77 24 80 Release

SDN10N004S2C

PDFN5*6-8 100 4
3 ±20 102 29 135 Release

SDN10N004S2B

TO263-3 100 4
3 ±20 102 28 136 Release

SDN10K004C-AA

PDFN5*6-8 100 4 6.4 1.7 ±20 76 13 135 Release

SDN10N3P9A-AA

TO220-3 100 3.9
3 ±20 130 40 120 Release

SDN10N3P5S2B

TO263-3 100 3.5
3 ±20 102 28 136 Release

SDN10N3P5B-AA

TO263-3 100 3.5
3 ±20 130 40 120 Release
SDH10N2P9A-AB TO220-3 100 2.9
3 ±20 176 51 175 Release

SDN10N2P8T-AA

TOLL-8 100 2.8
3 ±20 130 40 155 Release
SDH10N2P7B-AB TO263-3 100 2.7
3 ±20 140 41 180 Release

SDN10N2P7S2B

TO263-3 100 2.7
3 ±20 150 45 166 Release
SDN10N2P7B-AA TO263-3 100 2.7
3 ±20 140 41 180 Release
SDH10N2P7S2B TO263-3 100 2.7
3 ±20 150 45 166 Release
SDH10N2P3F-AA TO263-7-4S 100 2.3
3 ±20 178 55 240 Release
SDH10N2P1S2B TO263-3 100 2.1
3 ±20 245 65 176 Release

SDA10N002T-AB

TOLL-8 100 2
3.5 ±20 160 60 266 Release

SDN10N002T-AA

TOLL-8 100 2
2.8 ±20 193 55 240 Release
SDN10N002T-AB TOLL-8 100 2
3.5 ±20 160 60 260 Release
SDN10N002T-AC TOLL-8 100 2
3 ±20 176 54 259 Release
SDN10N1P5S2T TOLL-8 100 1.5
3 ±20 258 74 330 Release
SDN10N1P5S2T-1 TOLL-8 100 1.5
3 ±20 258 74 330 Release
SDH10N1P5S2T TOLL-8 100 1.5
3 ±20 258 74 330 Release
SDH10N1P5T-AB TOLL-8 100 1.5
3 ±20 258 74 330 Release
SDH10N1P5T-AC TOLL-8 100 1.5
3 ±20 260 76 330 Release

SDN10N1P5T-AB

TOLL-8 100 1.5
3 ±20 260 76 330 Release
SDA10N1P5T-AA TOLL-8 100 1.5
3 ±20 260 76 330 Release
SDN08N003S2C PDFN5*6-8 CLIP 80 3
3 ±20 67 19 176 Release

SDN06K9P5O-AA

SOP-8 65 9.5 18 1.9 ±20 19.5 7 20 Release
SDN06K9P5C-AA PDFN5*6-8 65 9.5 16 1.9 ±20 19.5 7 45 Release
SDN06K016C-AA PDFN5*6-8 60 16 27 1.9 ±20 13.5 5.5 22 Release
SDA06K9P5C-AA PDFN5*6-8 60 9.5 16 1.9 ±20 19.5 7 45 Release
SDN06K7P2O-AB SOP-8 60 7.2 14 1.9 ±20 27 8.7 24 Release
SDN06K007S2C PDFN5*6-8 60 7 17 1.9 ±20 24 5.8 52 Release
SDN06K5P8C-AA PDFN5*6-8 60 5.8 8.7 1.9 ±20 34 6.1 66 Release
SDN06K3P5C-AA PDFN5*6-8 60 3.5 5.5 1.9 ±20 50 7 101 Release

SDN06N1P6S4C

PDFN5*6-8 60 1.6
2.5 ±20 142 41 135 Release

SDH06K1P3C-AA

PDFN5*6-8 CLIP 60 1.3 2 1.8 ±20 119 19 252 Release
SDN06L1P3S4C PDFN5*6-8 CLIP 60 1.3 1.7 1.6 ±20 143 45 250 Release
SDA04K006N-AA PDFN5*6-D-8 40 7.2 12 1.8 ±20 15 3.7 23 Release
SDA04K5P2R-AA PDFN3.3*3.3 40 5.2 7.4 1.7 ±20 15 3.6 50 Release
SDA04K5P1C-AA PDFN5*6-8 40 5.1 8.9 1.8 ±20 15 3.7 68 Release
SDA04K2P2C-AA PDFN5*6-8 40 2.2 3.8 2 ±20 50 6.5 135 Release
SDH04N1P4C-AA PDFN5*6-8 CLIP 40 1.4
3 ±20 46 8.5 212 Release
SDH04L1P4C-AA PDFN5*6-8 CLIP 40 1.4 2 1.6 ±20 61 8.5 208 Release
SDA04K1P1C-AA PDFN5*6-8 CLIP 40 1.1 2 2 ±20 90 12 299 Release
SDH04L1P0T-AA TOLL-8 40 1.1 1.65 1.6 ±20 86 16 240 Release
SDA04N0P9S1F TO263-7 40 1.1
3.4 ±20 117 41 240 Release

SDH04N0P9S1F

TO263-7 40 1.1
3.4 ±20 117 41 240 Release
SDA04N0P9C-AA PDFN5*6-8 CLIP 40 0.92
3 ±20 66 16 301 Release

SDH04N0P9C-AA

PDFN5*6-8 CLIP 40 0.9
3 ±20 66 13 305 Release
SDH04L0P9C-AA PDFN5*6-8 CLIP 40 0.9 1.4 1.6 ±20 86 16 300 Release
SDA04N0P6F-AA TO263-7 40 0.9
3.4 ±20 238 82 240 Release
SDN03L1P4S1C PDFN5*6-8 CLIP 30 1.6 2.5 1.6 ±20 38 4.5 167 Release
